Aluminum

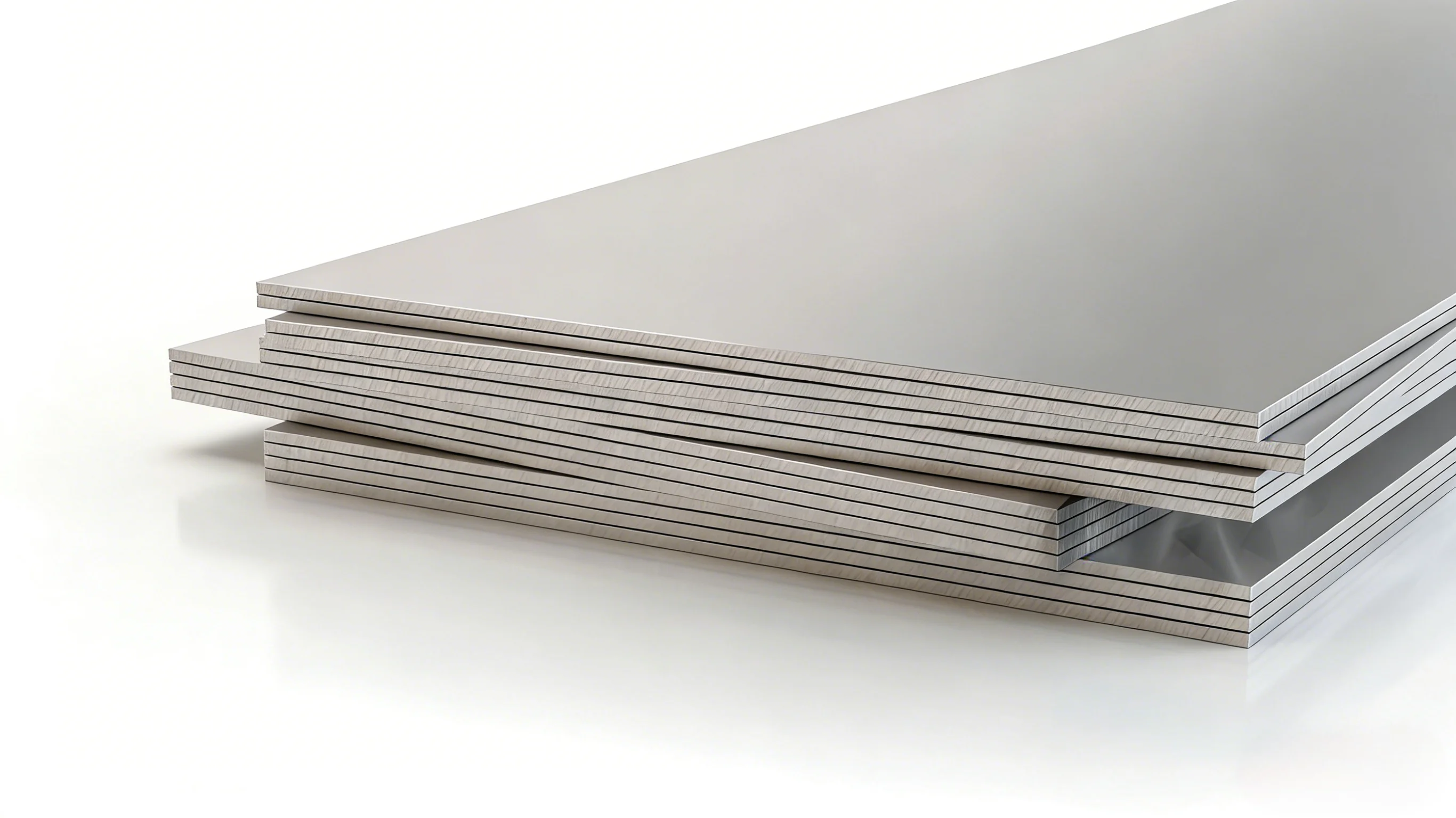

Aluminum Sheets & Plates

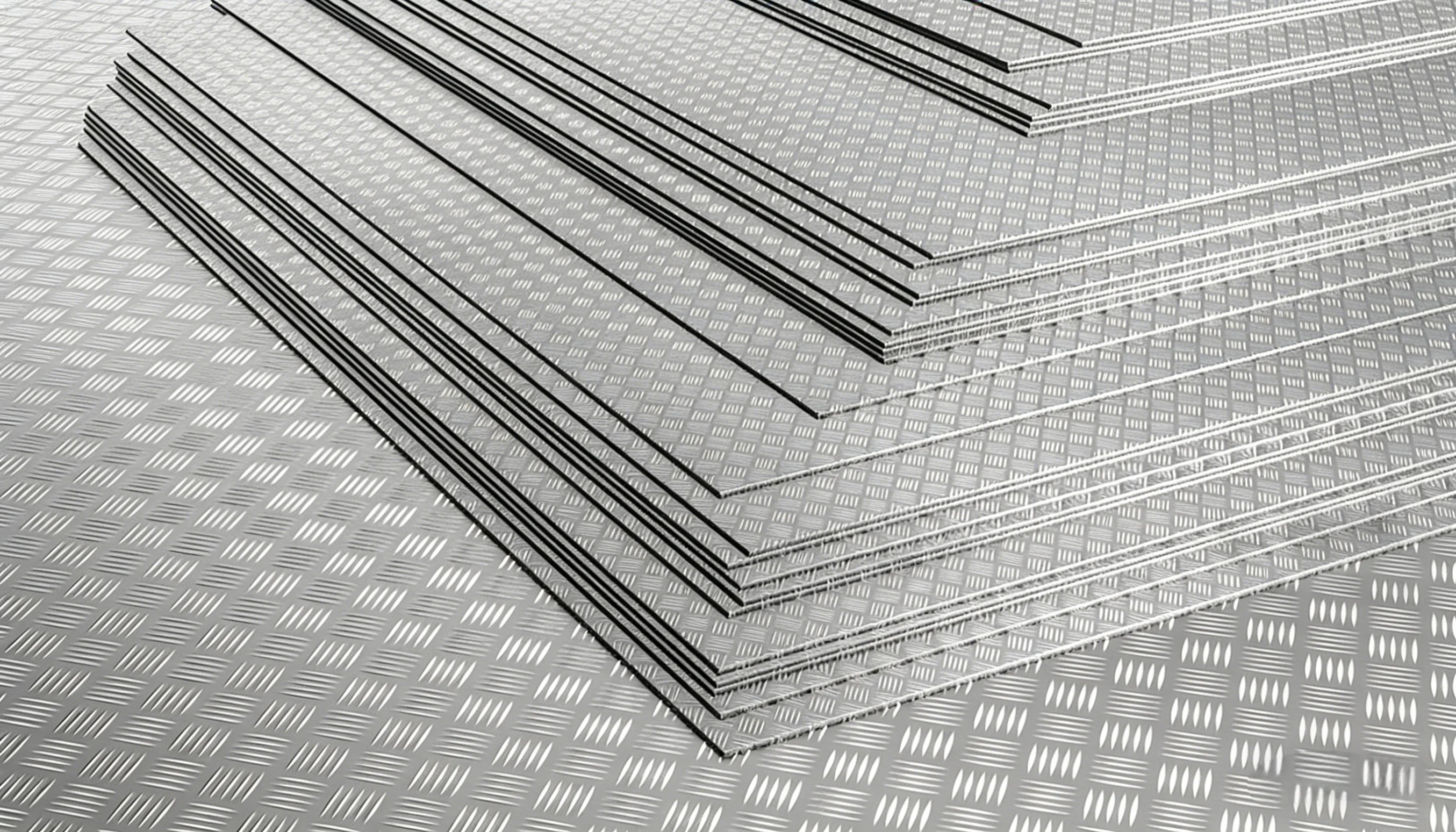

Aluminum sheets and plates, including checker plates (tread/diamond plates), deliver excellent strength, durability and versatility for diverse industrial, architectural, transportation and civil applications. Produced under stringent standards, they are available in various grades, tempers, thicknesses and finishes to meet specific design and functional requirements, ideal for applications ranging from machine parts, structural paneling, decorative facades and electronic enclosures to truck beds, ramps, kitchen equipment, aerospace components and marine fittings.

Request a Quote All Products

20+ Years Expertise · Fast Delivery · Best Service

Technical Data

Specifications

Production Range

Specification	Details
Thickness	0.2 mm – 200 mm (including thin-gauge sheets, standard sheets and thick plates; checker plates: 1.0 mm – 10 mm)
Width	30 mm – 2200 mm
Length	500 mm – 12000 mm
Surface Finish	Mill finish, Anodizing (clear, colored), Powder Coating, Brushed Finish, Mirror Finish (Polishing), Embossing, Sandblasted Finish, Willow leaf (2-bar and 5-bar tread plate), Diamond pattern (single-bar tread plate)
Alloy	1000 series (1050, 1060, 1070, 1080, 1100, 1145, 1200, 1235),2000 series (2014, 2017, 2024),3000 series (3003, 3004, 3005, 3104, 3105, 3A21),5000 series (5005, 5052, 5059, 5083, 5086, 5182, 5252, 5454, 5754),6000 series (6005, 6009, 6016, 6060, 6061, 6063, 6082, 6106, 6111),7000 series (7005, 7050, 7075)
Temper	F, O, H1, H12, H14, H16, H18, H19, H22, H24, H26, H28, H32, H34, H36, H38, H111, H112, H114, H116, H321, T3, T4, T6, T73, T351, H112, T451, T6, T651, T7451, and other available tempers matching corresponding alloys
Production Standard	ASTM B209, ASTM B210, ASTM B211, EN 485, DIN 1725, JIS H4000, JIS H4100, GB/T 3880, ISO standards

Industry Use Cases

Applications

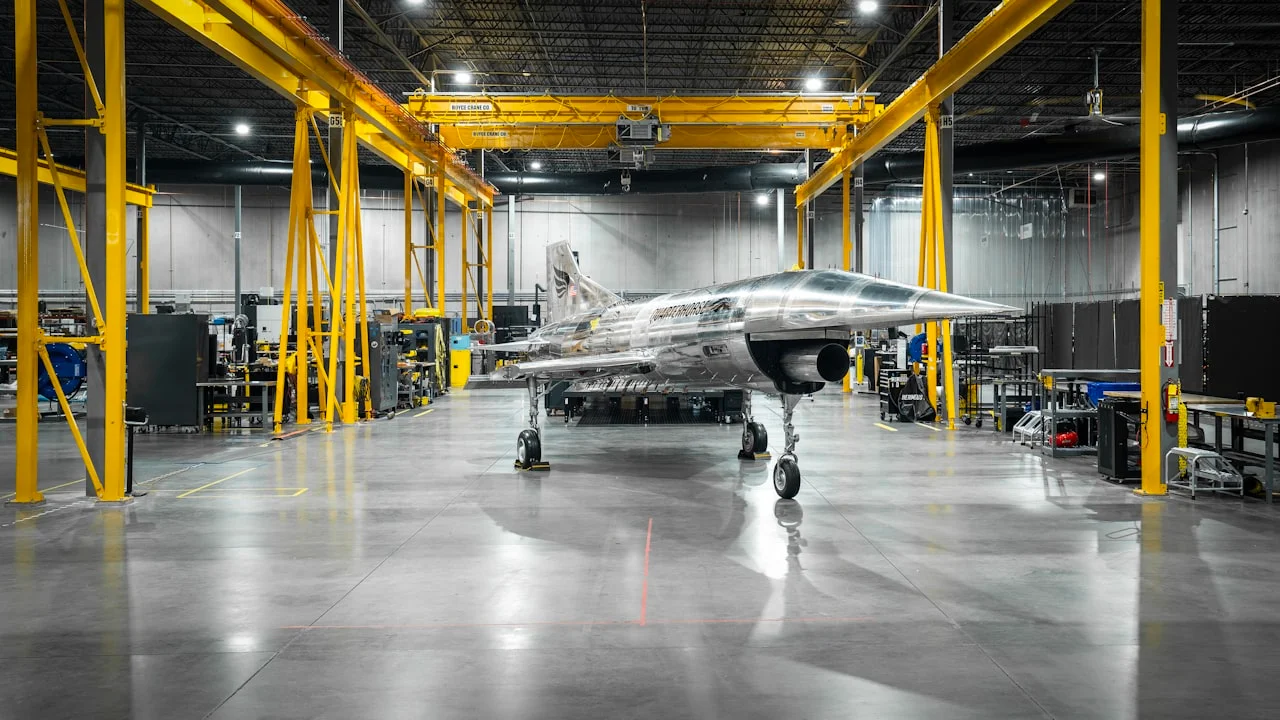

Aerospace & Aviation Manufacturing

2024-T3 and 7075-T6 alloy plates provide the exceptional strength-to-weight ratio demanded by aircraft fuselage panels, wing skins, and structural bulkheads — where every kilogram saved translates into reduced fuel consumption and increased payload capacity.

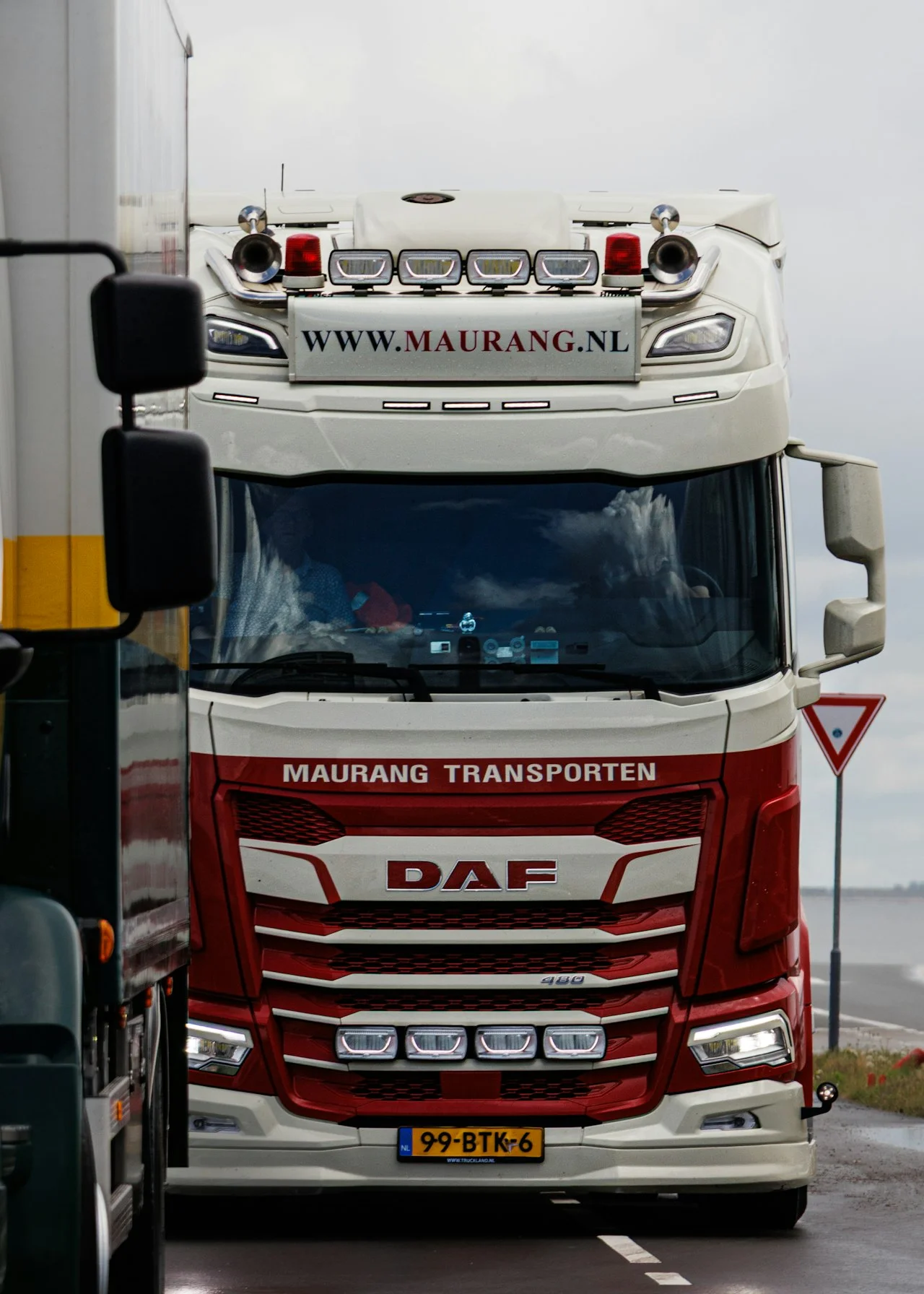

Transportation & Commercial Vehicles

5083/5052-H32 and 6061-T6 sheets form the body panels, floor plates, and side walls of truck trailers, tank trucks, and rail cars — cutting vehicle tare weight to maximize cargo capacity and improve fuel efficiency without sacrificing structural durability.

Marine Vessels & Offshore Structures

Marine-grade 5083/5086 alloy plates deliver outstanding seawater corrosion resistance for high-speed ferries, patrol vessels, pleasure craft hulls, and offshore topside structures — eliminating anti-corrosion coatings and reducing lifecycle maintenance costs.

Aluminum Sheets & Plates

Specifications

Production Range

Applications

Aerospace & Aviation Manufacturing

Transportation & Commercial Vehicles

Marine Vessels & Offshore Structures
